Switch SPDT 2 Pos Right Angle Slide (pack of 10)
Price:Â
3.50 AUD
(pack of 10)
4 in stock
Specifications:

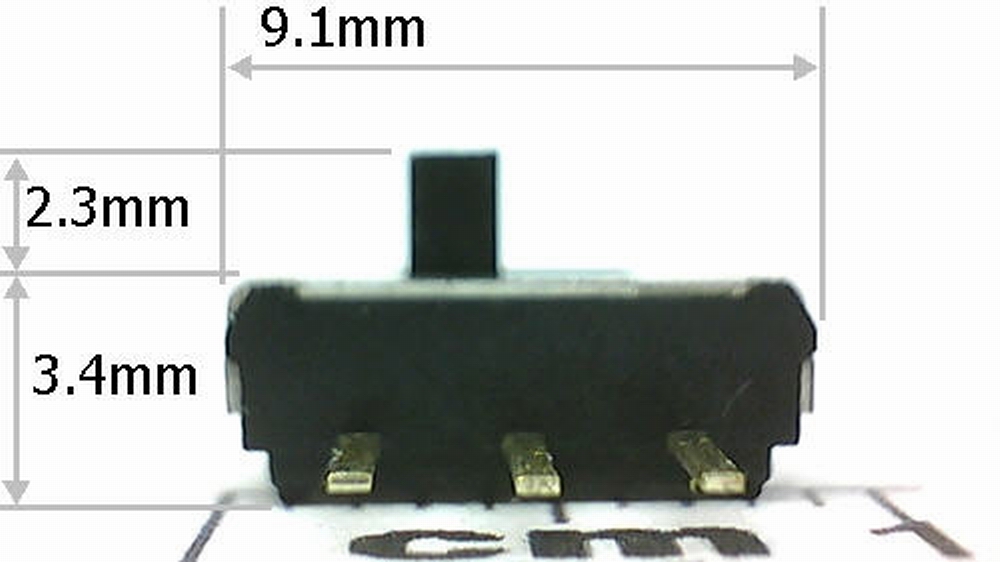

| Length | 9.1mm |
| Width | 3.6mm |
| Height | 5.7mm |
| Positions | 2 |
| Poles | 1 |
| Throw | 2 |

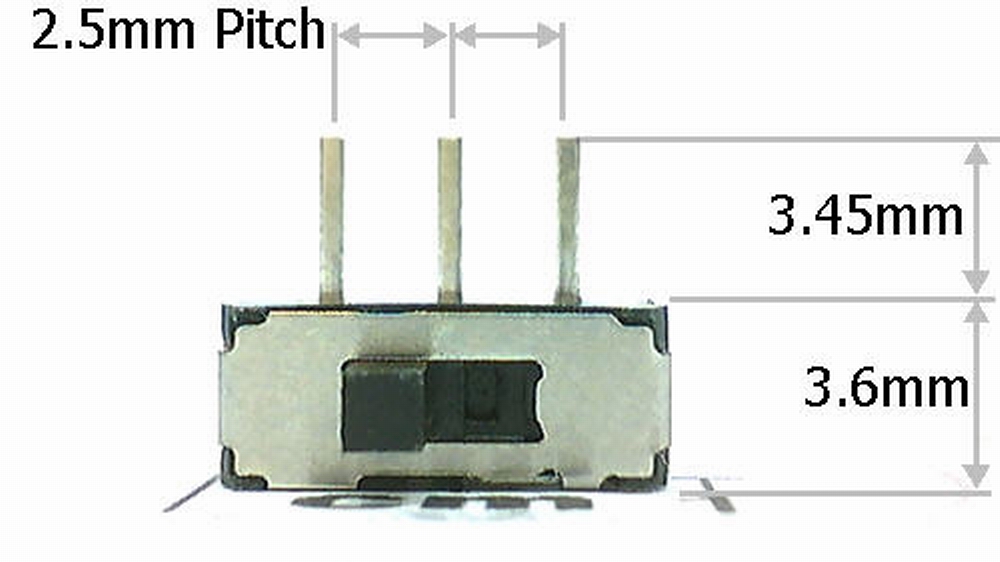

| Pin Pitch | 2.5mm |
| Krating | 12V 0.1A 30V 0.3A 50V 0.3A 60V 0.5A |
| Contact Resistance |
30m ohm max |
| Insulation Resistance | 100m ohm at 500V DC |
| Withstand Voltage | AC 500V for 1 min. |
| Switching Life | 50,000 cycles |
| No in pack | 10 Units |
